Forged
Forged

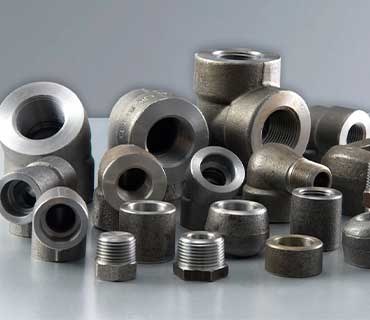

Forged fittings are a type of piping component that is manufactured through a process of shaping and strengthening metal using high-temperature and high-pressure techniques
Types of Fittings :
- Elbow (SW, NPT)
- Tee(Equal, Reducing)/(SW, NPT)
- Cap (SW, NPT)
- Cross (SW, NPT)
- Plug
- Olet (SW/NPT)
- Swage Nipple
- Union (SW/NPT)
- Coupling (Half, Full)/ (SW / NPT)
Specifications
RANGE |
CLS |
TYPES |
TYPE |
STANDARDS |
GRADE |
| 1/4"-4" | 2000,3000, 6000, 9000 | Carbon Steel(CS) | Threaded Socket Weld | A105N | LF1, LF2 CL1/CL2, LF3 CL1/CL2, A694 F42, F46, F48, F50, F52, F56, F60, F65, F70 A516.60, 65, 70 |
| 1/4"-4" | 2000,3000, 6000, 9000 | Alloy Steel(AS) | Threaded Socket Weld | A694 A350LF A182 | F42,46,48,48,50,52,56,60,65,70 – (High Temp),LF 1,2,3 – (Low Temp),F1,5,9,11,22,91 |
| 1/4"-4" | 2000,3000, 6000, 9000 | Austenitic Stainless (SS) | Threaded Socket Weld | A182 | F304,316,317,321,347,904 |
| 1/4"-4" | 2000,3000, 6000, 9000 | Duplex Stainless Steel(DSS) | Threaded Socket Weld | A182 GR | UNS S31803/UNS S32205 |
| 1/4"-4" | 2000,3000, 6000, 9000 | Super Duplex (SDSS) | Threaded Socket Weld | A182GR | UNS S32750/S32760 |
| 1/4"-4" | 2000,3000, 6000, 9000 | Copper Nickel(Cu-Ni) | Threaded Socket Weld | B122 GR | UNS C70600, C70400, C71000, C71500, C72200 |
| 1/4"-4" | 2000,3000, 6000, 9000 | Inconel | Threaded Socket Weld | B564 GR. |
UNS N06625, N08825, N08221 |
| 1/4"-4" | 2000,3000, 6000, 9000 | Monel | Threaded Socket Weld | B564 GR. |
UNS N0400 |
| 1/4"-4" | 2000,3000, 6000, 9000 | Titanium | Threaded Socket Weld | B381GR | F1,F2,F3,F4,F5,F7 |
| 1/4"-4" | 2000,3000, 6000, 9001 | Hastelloy | Threaded Socket Weld | B564 GR |
UNS N10276, N06022, N10665, N06058, N06202 |
